Rectifier circuit

an electrical device that converts an alternating current into a direct one by allowing a current to flow through it in one direction only.

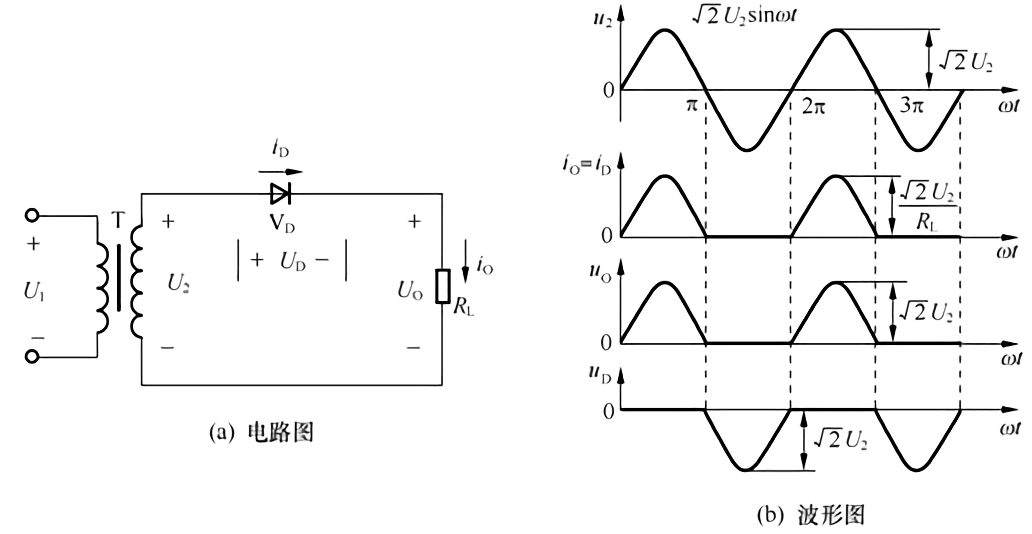

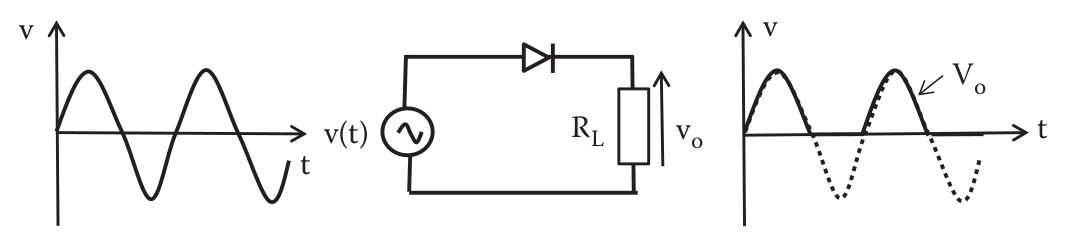

半波整流把交流电中的负电流抛弃,只剩正电流

When I look at this picture, all I thinking is: wow, my teacher got wrong.

我老师说diode元件符号是V, that was definitely wrong, 因为V代表的是电压,而下标d指的是diode

好了,进入正题。这里的 约是 的0.45倍

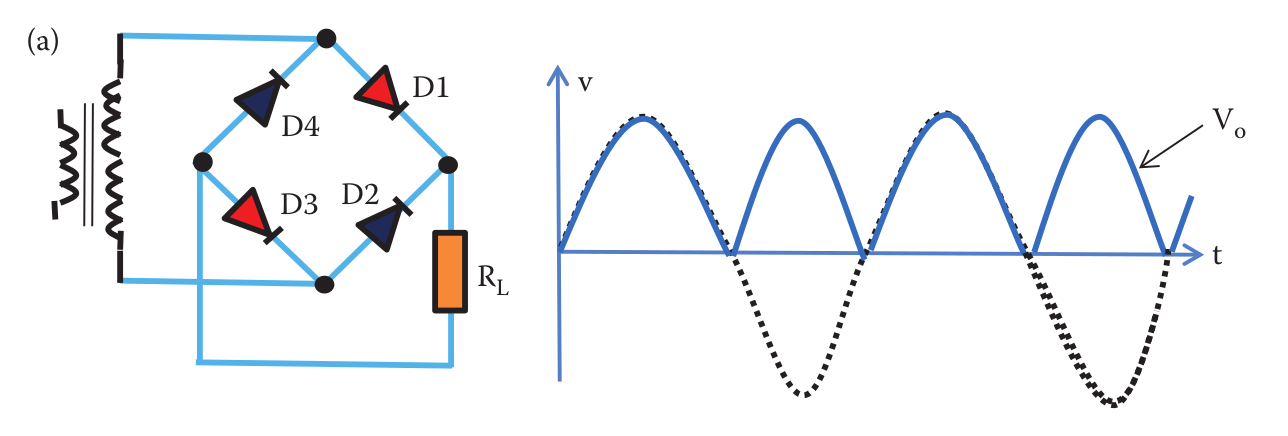

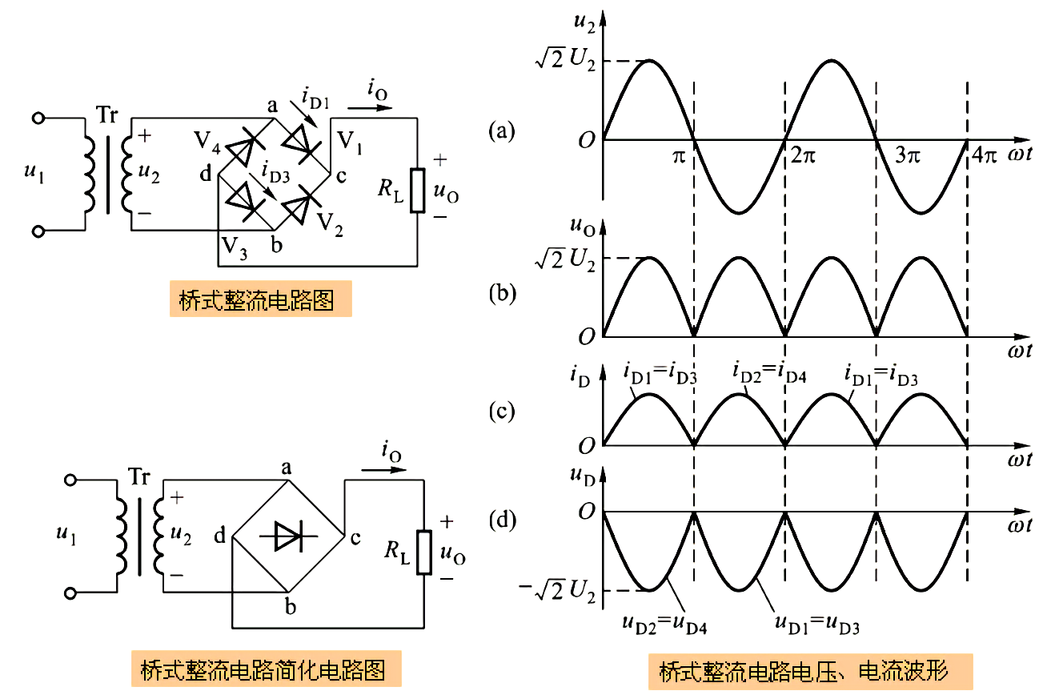

桥式(全波)整流电路把交流电中的负电流用上了

这里的 约是 的0.9倍


滤波器

个人觉得,滤波器这个名字起得不好,应该叫做波形平滑器

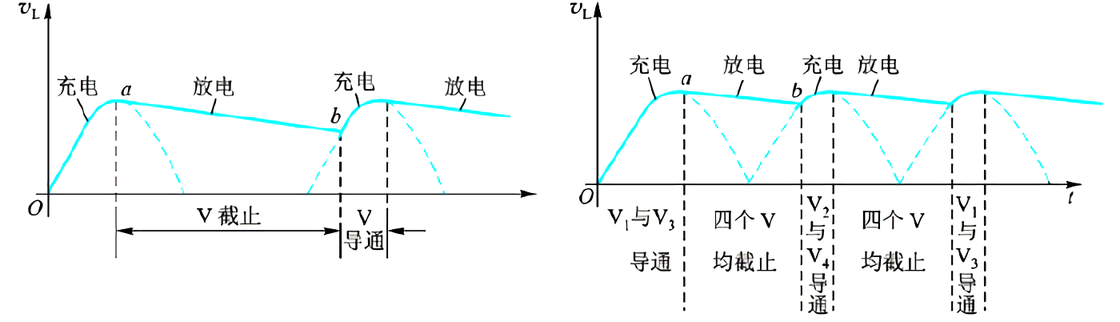

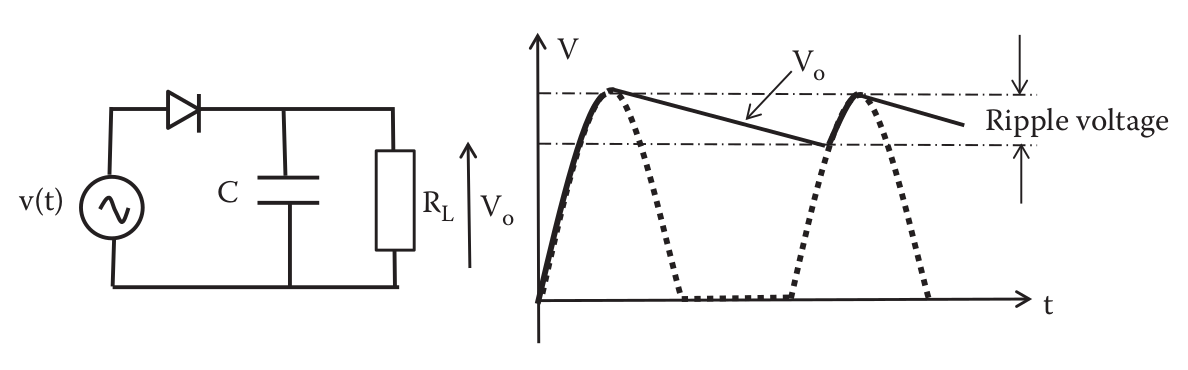

比如电容滤波器, 它的作用就是让起伏强烈的波形通过电容的冲放电过程变得更平稳,使电流更适合一些对直流稳定性要求高的设备

  • 对于半波整流 + 滤波 这种组合, 约是 的1.0倍

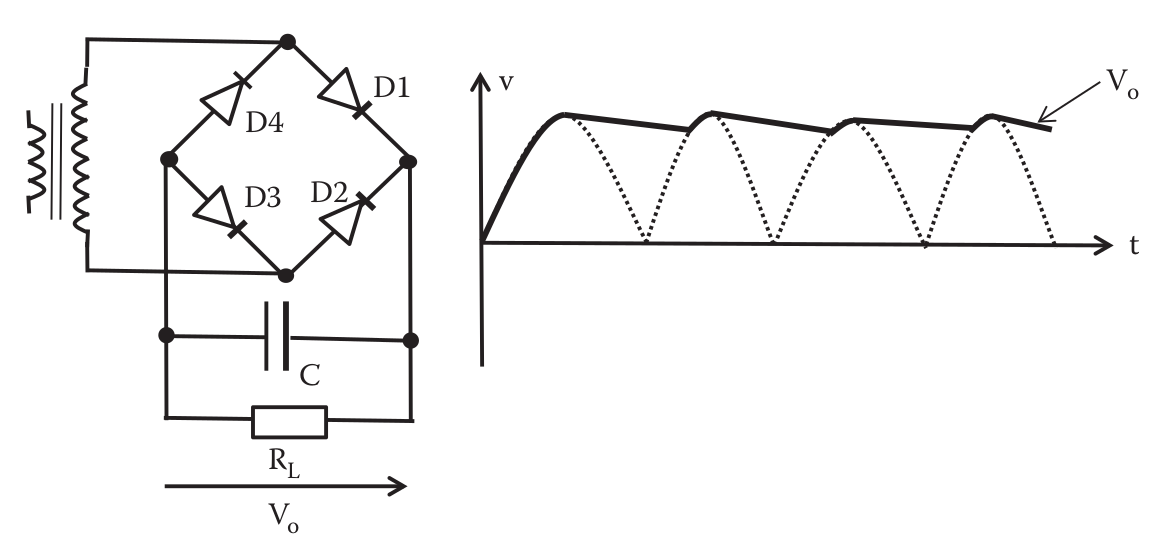

  • 对于桥式(全波)整流 + 滤波 这种组合, 约是 的1.2倍

你得知道 只是指的有效值,这里 可以达到最大峰值()呢!
