让我们先来了解一下什么是db (因为后面要大量用到它,如果不知道它是什么东西,对于程序员来讲,会睡不着覺的)

中文: dB是一个比值,是一个数值,是一个纯计数方法,没有任何单位标注。

The decibel (symbol: dB) is a unit of measurement used to express the ratio of one value of a power or field quantity to another on a logarithmic scale, the logarithmic quantity being called the power level or field level, respectively.

It can be used to express a change in value (e.g., +1 dB or −1 dB) or an absolute value.

In the latter case, it expresses the ratio of a value to a fixed reference value; when used in this way, a suffix that indicates the reference value is often appended to the decibel symbol.

For example, if the reference value is 1 volt, then the suffix is "V" (e.g., "20 dBV"), and if the reference value is one milliwatt, then the suffix is "m" (e.g., "20 dBm")

看起来是一种数值的表示方法,用来表示相对值。比如2dB与1dB,表示: 2dB的实际功率 是 1dB实际功率 的2倍。

功率 = Power


无(电)源光器件 (Passive Optical Device)

1. 光纤连接器 (optical fiber connector): 接头

2. 光衰减器 (optical attenuator): 用来减少光功率,单位dB。该器件类似电路里的电阻。

  • 螺丝,顺时针“紧”,逆时针“松”

  • 所有接受器件都有接受范围

  • 近距离传输,衰减可近似于0

  • 光发射机光接收机的功率并不一样,发射机比较大,接收机比较小,所以要用衰减器对发射信号进行处理,让它变小

  • 假设,那么夹在中间的

3. 光耦合器 (optical couplers): 同一波长,分光 或 合光

  • 平均分光

  • 的分光器,光功率下降

  • 的分光器,光功率增益(上升)

  • 功率 -> dB:

4. 波分复用器 (optical fiber wavelength division multiplexer): 不同波长的分离与合并

5. 波长转换器 (optical transponder unit): 波长转换,如 1310 -> 1550

6. 光学隔离器 (optical isolator): 隔离反向反射光

7. 光环形器 (optical circulator): 转发(重新发射)反向反射光; 换一条路再发

8. 光开关(optical switch): 通 与 断


测光衰减器

理论上:

光源(optical source) --- 光衰减器 --- 光功率计(power meter)

光源器上的读数不可靠,所以

实际上:

光源 --- 光功率计(把它的读数看作实际光源功率)() --- 光衰减器 --- 光功率计()

如果把衰减器换为光纤。设两头为A、B端,你需要把 A 到 B 测一遍,B 到 A 再测一遍,取平均值。(我也不知道为什么光纤会有这个特性)

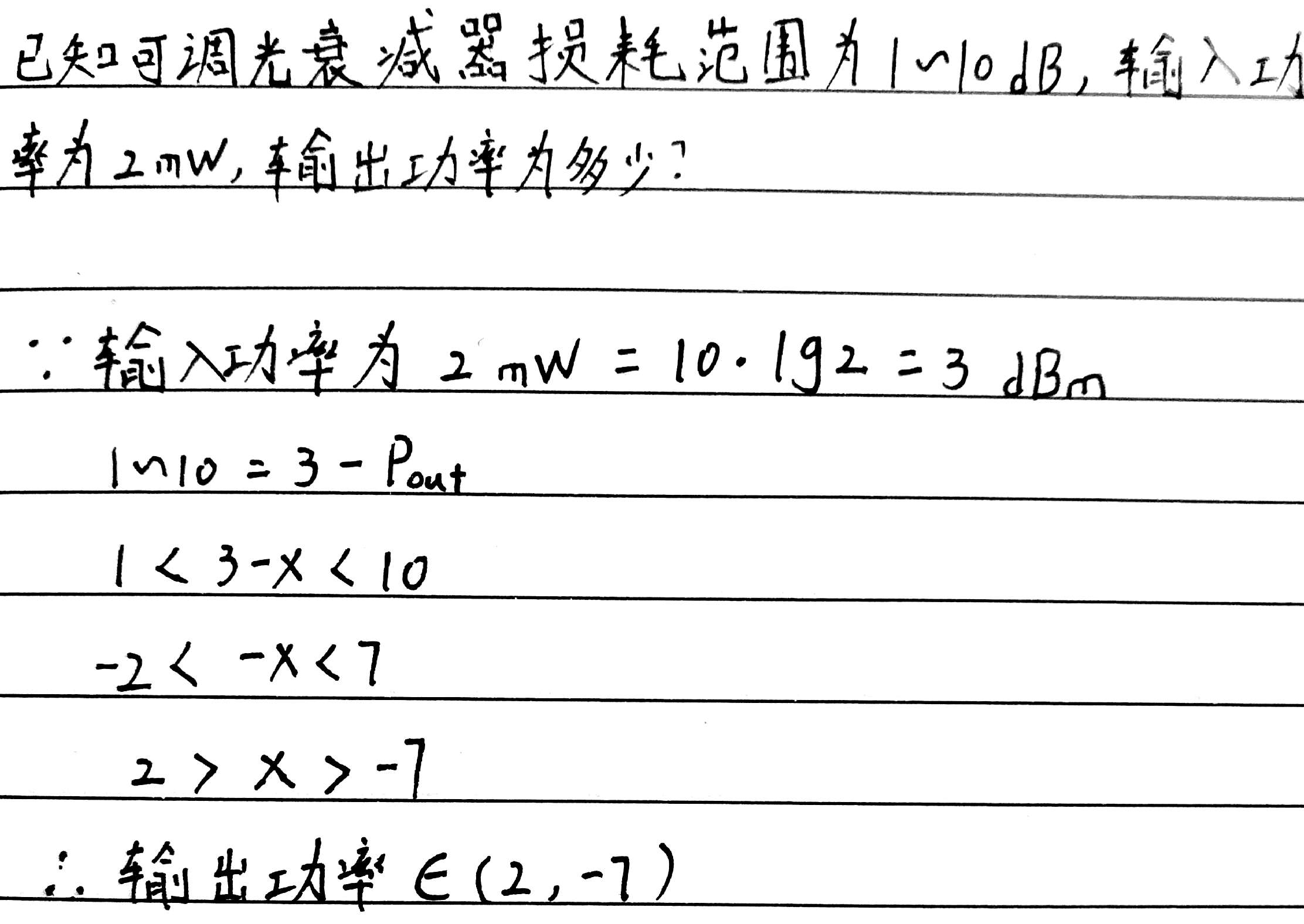

说了一大堆,还是不知道它是什么意思? Let's continue!

  • 都是光功率的单位,但由于光功率的数值太大,不容易让人看出相对关系,所以人们使用

  • 表示功率(power), 指以10为底的

如此一来,如果你知道了光纤两端(如A、B)的具体功率值,你就可以直观地用单位看出两端之间的差异(是增加、增益还是减少、衰减)

这个由“减法”得到的值,足以让我们看出信号是增加还是减少了
